What Do IP Ratings Mean?
Ever stood in a hardware store, holding a power tool, and wondered what those cryptic "IP" ratings mean? I remember feeling puzzled the first time I saw them, like trying to decode a secret message.
IP ratings are international standards that define how well electrical enclosures resist intrusion from solids and liquids. The first digit indicates protection against solids like dust, while the second digit denotes protection against liquids such as water. Understanding these codes helps you choose the right product for your specific needs.
Let’s dive into this together and demystify those numbers once and for all.
Where Do IP Ratings Come From?
Have you ever questioned who decided that "IP" should stand for more than just "Internet Protocol"?
IP ratings originate from the International Electrotechnical Commission (IEC) under the standard IEC 60529. They provide a systematic way to classify the degrees of protection offered by electrical enclosures against intrusion from foreign objects and moisture.
Knowing the source of these ratings is crucial, especially for someone like me who’s been in the electrical manufacturing industry for over 20 years. The International Electrotechnical Commission (IEC) sets global standards that ensure safety and compatibility across different countries.
The Role of IEC and CE Standards
Understanding these standards isn’t just for engineers; it’s essential for anyone dealing with electrical products.
| Standard | Purpose |
|---|---|
| IEC 60529 | Defines IP ratings for protection against solids and liquids |
| CE Marking | Indicates compliance with EU safety, health, and environmental requirements |
By adhering to these, we ensure our products meet international safety norms, which is vital for our clients in Germany, France, and beyond.
What Are IP Rating Codes?
So, what’s behind those numbers following the "IP"?

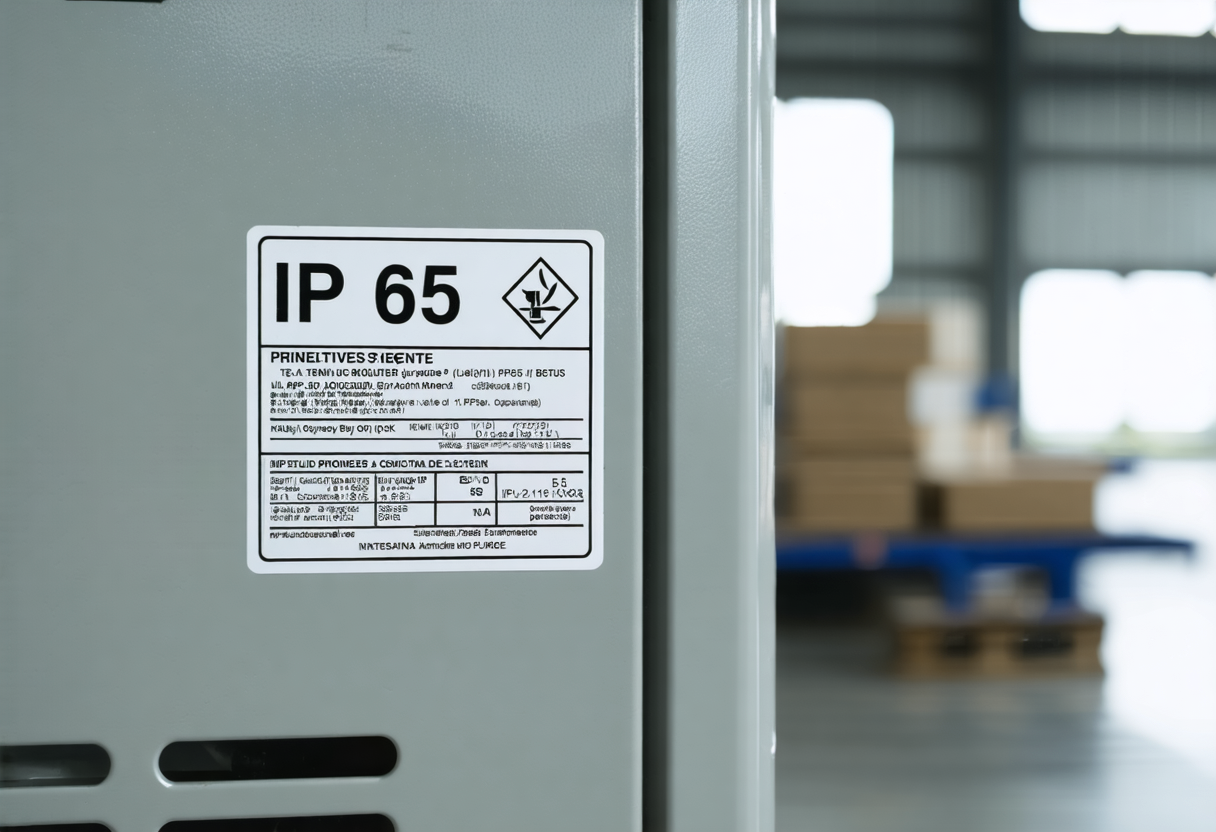

An IP rating code consists of two digits: the first indicates protection against solids (0-6), and the second denotes protection against liquids (0-8). For example, an IP65 rating means the product is dust-tight and protected against water jets from any direction.
Breaking down these codes makes it easier to choose the right equipment, whether you’re a DIY enthusiast or a professional buyer.
Decoding the Digits
- First Digit (Solids):
- 0: No protection
- 1-6: From large objects to dust-tight
- Second Digit (Liquids):
- 0: No protection
- 1-8: From dripping water to continuous immersion
Understanding this can save you from costly mistakes and enhance safety.
IP Protection Classes
IP (Ingress Protection) protection classes, also known as IP ratings, define levels of protection against intrusion from solid particles (like dust) and liquids (like water). The IP rating consists of two digits:
- The first digit: Protection against solid objects.
- The second digit: Protection against liquids.
First Digit: Solid Particle Protection
| Digit | Protection Level |
|---|---|
| 0 | No protection |
| 1 | Protection against objects > 50mm (e.g., hand) |
| 2 | Protection against objects > 12.5mm (e.g., finger) |
| 3 | Protection against objects > 2.5mm (e.g., tools) |
| 4 | Protection against objects > 1mm (e.g., wires) |
| 5 | Dust-protected (limited ingress of dust) |
| 6 | Dust-tight (complete protection from dust) |
Second Digit: Liquid Protection
| Digit | Protection Level |
|---|---|
| 0 | No protection |
| 1 | Protection against vertically dripping water |
| 2 | Protection against dripping water when tilted 15° |
| 3 | Protection against spraying water up to 60° angle |
| 4 | Protection against splashing water from any direction |
| 5 | Protection against water jets |
| 6 | Protection against powerful water jets |
| 7 | Protection against temporary immersion in water (1m) |
| 8 | Protection against continuous immersion in water |
Example IP Rating:
- IP67:
- 6: Dust-tight, no ingress of dust.
- 7: Can withstand temporary immersion in water up to 1 meter for 30 minutes.
Use IP ratings to determine the suitability of a product for various environmental conditions.

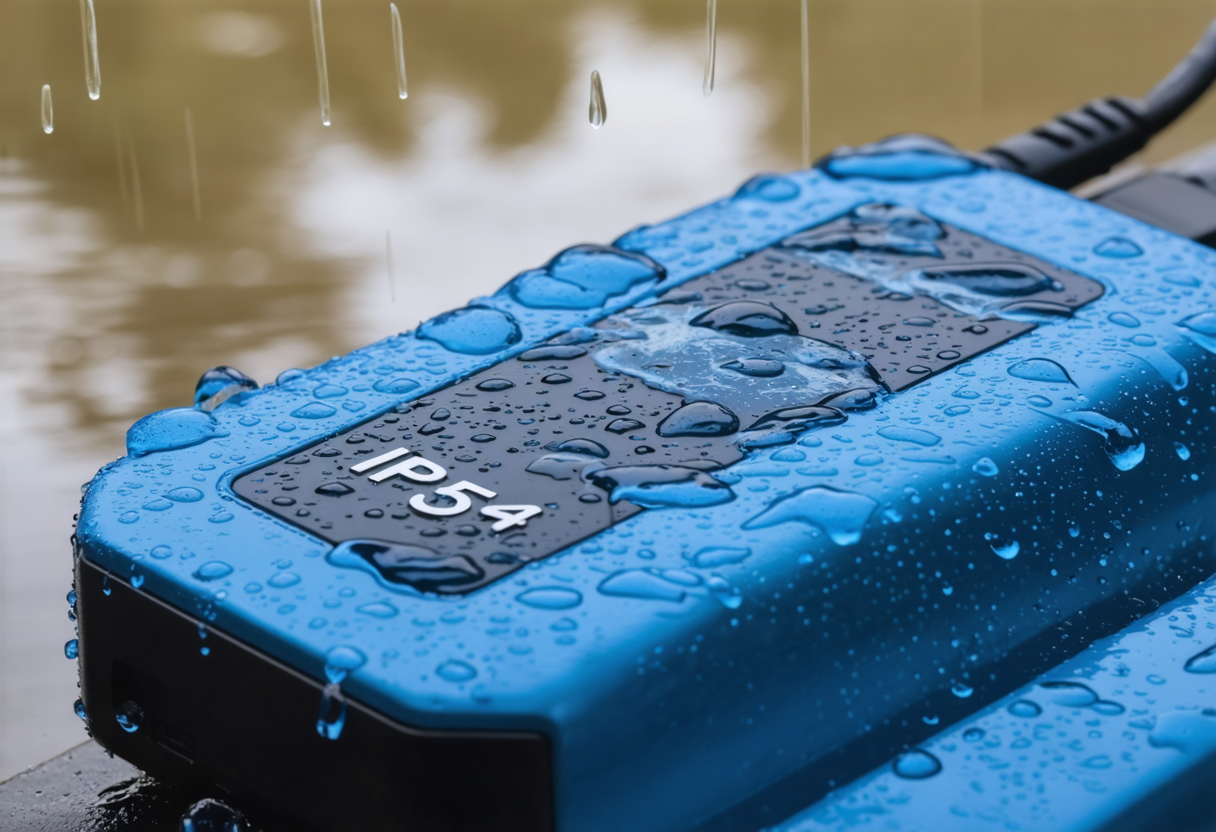

Is IP54 Fully Waterproof?
I’ve been asked this question countless times: "Is IP54 fully waterproof?"
No, IP54 is not fully waterproof. It offers limited protection against dust ingress and protection against water splashes from any direction. While it can handle light rain, it’s not suitable for heavy water exposure or immersion. For full waterproofing, consider ratings like IP67 or higher.
Choosing the right IP rating is crucial, especially if you’re planning to use the product outdoors or in wet conditions.
Comparing IP54 with Higher Ratings
| IP Rating | Dust Protection | Water Protection | Suitable For |
|---|---|---|---|
| IP54 | Limited dust ingress | Water splashes | Indoor/outdoor with light moisture |
| IP67 | Dust-tight | Immersion up to 1m | Outdoor/wet environments |
Knowing this helps you make informed decisions and ensures the longevity of your equipment.
IP20 vs IP65
Ever found yourself torn between IP20 and IP65 products?
IP20 provides protection against solid objects larger than 12mm but offers no protection against liquids. IP65, on the other hand, is dust-tight and protected against water jets. Your choice depends on where and how you plan to use the product—indoors in dry conditions or outdoors exposed to the elements.
I’ve seen clients make costly mistakes by overlooking these differences, so let’s break it down.
Side-by-Side Comparison
| Feature | IP20 | IP65 |
|---|---|---|
| Dust Protection | Objects >12mm | Dust-tight |
| Water Protection | None | Water jets |
| Ideal Use | Indoor, dry areas | Outdoor, wet or dusty areas |
Selecting the appropriate rating ensures safety and efficiency, whether you’re setting up a home office or managing a construction site.
Conclusion
Deciphering IP ratings doesn’t have to feel like cracking a secret code. Understanding these standards empowers you to make the best choices for your projects. Next time you pick up a power strip or extension cord, you’ll know exactly what those numbers mean.
